Plus系列高靈敏度玻璃霧化器-島津ICPE9000-儀器配件
儀器廠商：Shimadzu
儀器名稱：電感耦合等離子體光譜儀icpe
配件名稱：玻璃霧化器
配件編號：Plus
材料：glass
型號兼容：ICPE9000
價(jià)格參考：3822.00元

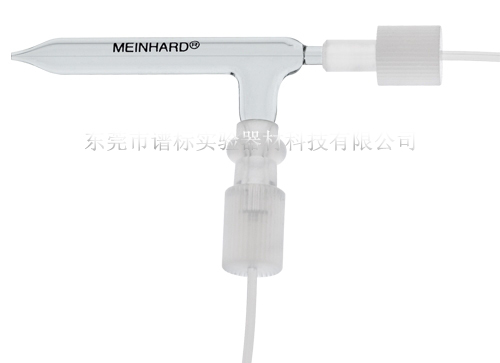

Plus系列高靈敏度玻璃霧化器-島津ICPE9000-儀器配件
TR+玻璃高靈敏度（A型）霧化器，低內(nèi)部容積入口。在50 PSI（3.4 bar/345 kPa）條件下，氬氣流量為1 L/min時(shí)，自吸速率為0.5 mL/min。蠕動泵送速率<0.1至>1ml/min。
霧化器配件貨號、描述參考表：
| Nebulizers |
Shimazdu |
Meinhard |
Description |
| 1 |
All Meinhard nebulizers come standard with the revolutionary new PFA gas and sample fitting system. The "FG" offers the benefits of an easy-to-use quick connect while maintaining high purity for sensitive ICP applications. |
| 2 |
Quartz |
SILQ-50-A0.5 |
SilQ+ Ultra-high Purity Quartz Nebulizer, lowest contamination for Al, Fe, K. For use with all standard non-HF applications. |
| 3 |
Quartz |
TQP-50-A0.5 |
TQ+ Quartz Nebulizer, low blank levels compared to glass nebulizers. For use with all standard non-HF applications. |
| 4 |
Glass (046-00092-20) |
TR-50-K1 |
For high concentration samples, with high efficiency nubulization. Meinhard Type K, Glass, 50 psi (3.4bar/345kPA) Flow Rate::1 mL/min (Standard) |
| 5 |
Glass (046-00092-21) |
TR-50-A0.5 |
For high efficiency nebulization. Meinhard Type A, Glass, 50 PSI (3.4 bar/345 kPA) Flow Rate::0.5 mL/min |
| 6 |
Glass |
TRP-50-A0.5 |
Plus Series glass concentric nebulizer, Type A. 1 L/min and 0.5 mL/min @ 50 psig (3.4 bar). 0.7 mm (0.030”) inlet for low internal dead volume. |
| 7 |
PFA-ST |
ME2040-95 |
PFA-ST self-aspirating nebulizer with external 1/4-28 threaded connector. |
| 8 |
PFA |
ME2030-95 |
PFA MicroFlow high solids large bore nebulizer with external 1/4-28 threaded connector. Ideal for strong acids, high solids, alkalis, organic solvents, soils and high salt solutions. |
| 9 |
PFA-ST3 |
MEST3-70 |
PFA-ST3 MicroFlow nebulizer with external 1/4-28 threaded connector. Designed for superior clog resistance and higher sensitivity compared to the standard PFA nebulizer. |
| 10 |
PolyPro-ST |
ME4040-95 |
Poly-pro self-aspirating nebulizer with external 1/4-28 threaded connector |
| 11 |
Cleaner - PFA |
SC-0599-0109 |
Syringe fl ush kit. Includes 3 mL syringe, two luer to 1/4-28 adapters. |
| 12 |
Cleaner |
PRL-02 |
Cleaning tool for all quartz and glass concentric nebulizers |
| 13 |
Obstruction Removal |
ME2046-0001 |
Fused silica obstruction removal kit for ST-type nebulizers. Includes one guide, 10 pieces of fused silica and instructions. |
| 14 |
(046-00092-18) |
F5-50 |
Fit Kit F5 for Standard Bore Meinhard nebulizer, standard integrated capillary, 0.50 mm ID (orange marker) x 70 cm PTFE |
| 15 |
PEEK (046-00092-14) |
PMM4000 |
PEEK material, standard pressure (45 psi), low sample flow, enhanced parallel path design. Can operate on 0.2 ml/min to 2.5 ml/min.
|
