| Item |
P/N |
Description |
| |
|
主機詳細描述及報價 |
| 1 |
47100/A |

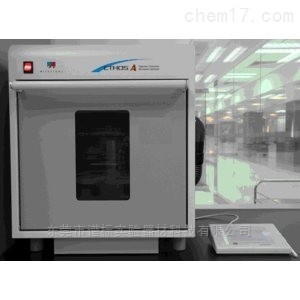

ETHOS A Advanced Microwave Digestion/Extraction System |
| ETHOS A 高級微波消解/萃取系統 |
| The complete package includes : |
| 1.微波性能 |
| l |
Frequency： 2450MHz, |
| |
發射頻率：2450MHz, |
| l |
Unpulsed microwave emission.PID Contral continuous Power 0-100%, |
| |
非脈沖微波發射，PID自動功率調整 0-100%, |
| l |
Specialty Magnetron system with Rotating diffuser for homogeneous microwave distribution in the cavit |
| |
專業磁控管加轉動散射器保證腔體內能量分布均勻 |
| l |
Magnetrons protected from reflected microwave energy |
| |
微波能量反射中磁控管保護,超強微波聚焦功能 |
| l |
Installed power:2500Watt. Microwave power: 1500 Watt, controlled via microprocessor continously |
| |
儀器安裝功率：2500W，微波功率：1500W，計算機控制，連續可調 |
| 2.腔體安全系統 |
| l |
Self-sealing, pressure responsive, stainless steel door with protected glass window |
| |
for visual inspection. |
| |
不銹鋼、自密封瀉壓安全門，具有防爆觀察窗 |
| l |
Microwave cavity: All stainless steel hardwarecoated with 5 layers of PTFE applied at 350°C |
| |
微波腔體：具5層可耐350°C高溫PTFE涂層的全不銹鋼硬件 |
| l |
All hardware protected against acids/organic solvents with polymer coating both inside and outside surfaces |
| |
所有硬件內外表面聚合物涂層，防酸、有機溶劑腐蝕 |
| l |
5 years warranty on coating against corrosion. |
| |
5年內保證腔體無任何腐蝕，如出現腐蝕免費更換 |
| l |
4 safety interlocks to prevent microwave emission with open door |
| |
四組控制安全開關,防止微波泄漏 |
| l |
Highest safety through unique pressare-responsive door. |
| |
高安全性能的自密封防爆保護門 |
| l |
Built-in high flow exhaust system, flow rate 6m3/min acid corrosion resistant |
| |
內置大流量排風系，流量6m3/min,抗腐蝕 |
| l |
Built-in Automatic Pressure limit monitor sytem for all vessel |
| |
內置壓力監控系統：專利彈性變形檢測，當樣品罐出現異常高壓時，自動調整壓力 |
| l |
Inside of microwave cavity illuminated by a lamp. |
| |
內置腔體照明 |
| 3.規格尺寸 |
| l |
1 RS 232 port for external devices. |
| |
帶一RS232接口以外接設備 |
| l |
Largest microwave cavity: 37 x 34.5 x 33.5H cm (approx. 43 liters) |
| |
腔體尺寸:37×34.5×33.5 cm（約43升） |
| l |
Weight: ca. 90 kg,External Dimensions:55 x 55 x 70H cm |
| |
重量：大約90Kg，外型尺寸：55 x 55 x 70H cm |
| 4.滿足標準 |
| l |
ISO9001;9002;CE;ECXXX;IEC705; |
| l |
EPA3015 SW-846;EPA3051 SW-846;EPA3052 SW846;EPA3546;ASTM;GLP |
| |
Operator Manual in English |
| l |
Power: 230 V/50 Hz, 2,5 kWatt |
| 2 |
50214 |
ATC-400CE High precision temperature control System, Control temperature |
| range is 0-300℃, Acuuracy:±0.1℃ |
| ATC-400-CE高精度溫度控制系統,控溫范圍：0-300℃，檢測精度：±0.1℃ |
| 3 |
計算機 |
Control Terminal |
| l |
Control terminal 260, touch screen, indutrial grade controller 5" screen, |
| |
260控制終端，觸摸屏技術，5寸顯示屏，工業級控制器 |
| l |
1 PS2 port for mouse, 1 RS 485 port for microwave unit |
| |
配置1個PS、1個RS485通信接口 |
| l |
Internal memory save methods and process reporting data inclusive of multiple |
| l |
steps ,each step includes microwave power, time,internal and external |
| l |
temperature, and pressure. |
| l |
內置存儲單元儲存方法和過程數據，包含多步消解程序，每步包含微波功率、時間、壓力、罐內溫度、罐外溫度等 |
| 軟件 |
Software |
| l |
Easy-Control Software for full GLP documentation with PID Algorithms to exactly duplicate the required temperature curve and for full Quality Assurance. |
| |
Easy-Control軟件完全符合GLP標準，PID控制技術，確保精確控溫曲線和完整的質量保證 |
| 4 |
SK-12HT |
MPR-600/12S High Pressure Segment Rotor for temperature control |
| MPR-600/12S 高壓分體轉子（12罐） |
| MPR-600/12S central part, top safety ring,12 standard segments complete. with PP holders, |
| and protection shields, |
| MPR-600/12S中心部件、頂部彈簧、12個標準罐座及外罐 |
| Maximum Pressure: 100bar (1500psi) |
| 最大壓力：100bar（1500psi） |
| Maximum Temperature: 3000C |
| 最大溫度：300℃ |
| Rapid air-water cooling |
| 快速空氣或水冷卻 |
| MPR-600/12S Complete Package for ATC-400-CE |
| 33806 |
HPV-100 TFM vessel 100 mL |
| HPV-100 TFM內罐 100mL |
| 35140 |
SD-05/S TFM Cover |
| TFM 蓋子 |
| 50211 |
Reference cover complete for temperature control |
| TFM主控罐蓋子 |
| 34010 |
HTC-1000 Special Spring for high pressure rotor |
| HTC-1000高壓彈性安全帽 |
| 5 |
工具 |
ROTOR ACCESSORIES |
| MPR-600/12S Work Station |
| MPR-600/12S 工作臺 |
| Tension Wrench |
| 力矩扳手 |
